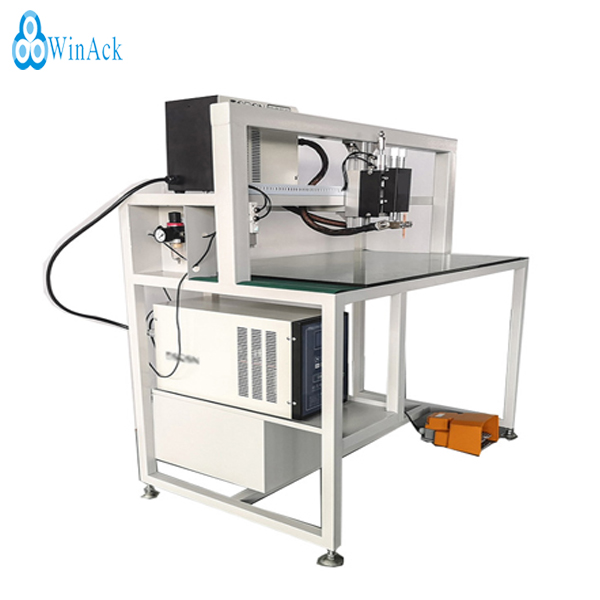

Professional 18650 Lithium Battery Spot Welder Machine

  • Product model: WA-SW-28B
  • Welding speed of nickel sheet: 0.8~1.2 S/PCS
  • Thickness of flat welding nickel sheet: 0.08-0.30MM
  • Thickness of projection welding nickel sheet: 0.20-0.50MM
  • Product description: The 18650 lithium battery spot welder is a professional machine with good welding quality and fast welding speed, suitable for welding 18650, 26650, 32650, and 21700 battery packs.
  • INQUIRY   EMAIL

Product description:

This battery spot welder is a professional machine with good welding quality and fast welding speed, low splash during welding, no discoloration of welding joints, making it a good choice for lithium ion battery pack assembly welding. It is suitable for welding 18650, 26650, 32650, and 21700 battery packs, such as EV battery, electric bicycle battery, and street lamp battery.


Features:

1. Particularly suitable for welding of lithium battery pack, stable welding process and high welding quality.

2. The maximum output welding current is 8000A, the ripple is small, the heat is concentrated and the welding thermal efficiency is improved.

3. Controlled by microcontroller, with current, voltage and power monitoring functions.

4. It is equipped with diagnostic and alarm functions for current abnormality, monitor value over limit, net voltage over limit and overheat.

5. The inverter bridge uses soft switching technology to reduce switching losses and reduce electromagnetic interference.

6. The inverter bridge automatically shuts down when the current is abnormal, enhancing system protection.

7. Three-stage heating setting with slow rise and slow fall of current, wide setting time range (0~250ms or 0~1s), suitable for complex welding process.

8. Equipped with LCD display; data storage using EEPROM, no need to worry about battery life, can store 20 sets of welding parameters, convenient for welding many different products.

9. Fast response time, no need to charge or discharge, controllable.

10. Available welding modes: single spot welding and continuous spot welding.


18650 Lithium Battery Spot Welder Machine Parameters

Product name

18650 Battery Spot Welding Machine

Product model

WA-SW-28B

Welding speed of nickel sheet

0.8~1.2 S/PCS

Effective travel of working platform

800mm*500mm

Control mode

Fixed voltage control

Input voltage

220V±10% / 50/60Hz

Rated power

350W

Maximum Power of Transformer

35KVA

Maximum output current

8000A

Rated capacity

500J

Welding voltage adjustment

50~350VDC

Welding time

1.0ms~20.0ms, Accuracy: 0.1ms

Welding pulse frequency

Secondary

Welding needle configuration

1.8mm or 3mm or 6mm

Debugging Spacing of Welding Needles

0-20mm

Welding material

Pure nickel sheet or nickel-plated steel

Thickness of flat welding nickel sheet

0.08-0.30MM

Thickness of projection welding nickel sheet

0.20-0.50MM

Parameter store

10 groups

Size(L*W*H)

1000*600*1310mm

Overall weight

120KG

18650 Lithium Battery Spot Welder


Lithium Battery Spot Welder Machine

Professional 18650 Lithium Battery Spot Welder Machine
