Spot Welding Machine for Lithium-ion Batteries

  • Product model: WA-SW-50B
  • Welding speed of nickel sheet: 0.8~1.2 S/PCS
  • Effective travel of working platform: 800mm*500mm
  • Thickness of the nickel sheet: 0.12~0.20mm
  • Product description: The spot welding machine for lithium-ion batteries adopts double pulse welding, which can provide better welding quality, stronger and more beautiful.
  • INQUIRY   EMAIL

Product description:

The battery spot welding machine for lithium-ion batteries uses a capacitor energy storage transistor to control the discharge power, and uses the energy stored in the capacitor to continue welding. The welding current rises very fast, which is suitable for ultra-precision welding.


Scope of application:

The battery spot welding machine for lithium-ion batteries is particularly suitable for the welding of lithium-ion battery packs, such as E-bike battery, AGV battery, Power Tool battery, E-motorcycle battery, etc.


Function introduction:

1. The lithium-ion battery spot welder is controlled by a 32-bit microprocessor, digital energy setting, precise control of welding energy.

2. The alarm function can effectively detect the welding current, anti-interference design, and reliable operation.

3. The unique and excellent characteristics of dual-pulse welding provide better welding quality pulses. Different energy is used to discharge the welding object twice continuously, and the welding effect is stronger and more beautiful.

4. Using precise digital control, 32 groups of parameters can be stored in advance, and can be changed and recalled at will.

5. The color LCD screen can easily display the welding parameters and curves.

6. The discharge time can be precisely controlled to make the solder joints stronger and more beautiful.

7. The minimum division of welding adjustment time is 10ns, which makes the precision more precise.


Device parameters

Product name

Spot Welding Machine for Lithium-ion Batteries

Product model

WA-SW-50B

Welding speed of nickel sheet

0.8~1.2 S/PCS

Effective travel of working platform

800mm*500mm

Control mode

A: fixed current control

B: fixed voltage control

C: fixed current and voltage control

Input voltage

220V±10% / 50/60Hz

Maximum power consumption

350W

Maximum welding current

50A

Highest voltage

30V

Current setting range

0~5000A

Voltage setting range

0~9.99V

Monitor display

Current RMS / Voltage RMS

Peak current / Peak voltage

Welding needle configuration

1.8mm or 3mm or 6mm

Debugging Spacing of Welding Needles

0~20mm

Welding material

Pure nickel sheet

Thickness of the nickel sheet

0.12~0.20mm

Size(L*W*H)

1000*600*1310mm

Overall weight

About 100KG

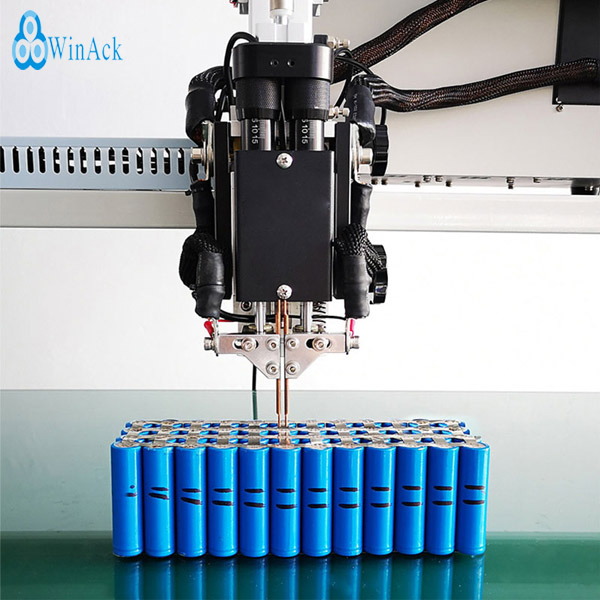

Spot welding machine for lithium-ion batteries for E-bike AGV Power-tool battery

E-bike Power-tool battery pack spot welding machine
