Mobile phone battery tester

  • Product model: WA-BTS-7000
  • Voltage: 0~5V
  • Current: 0~3A
  • Leakage current: 0~500uA
  • Product description: The mobile phone battery tester is suitable for all functional and performance testing of the finished battery with power management chip in the mobile phone battery production line.
  • INQUIRY   EMAIL
Product description:

The mobile phone battery testing equipment is suitable for all functional testing of the cell phone battery with power management chipincluding communication, writing code, precision verification, and battery performance test.


Features:

1. With modular design, a single test channel is a mobile phone battery tester.

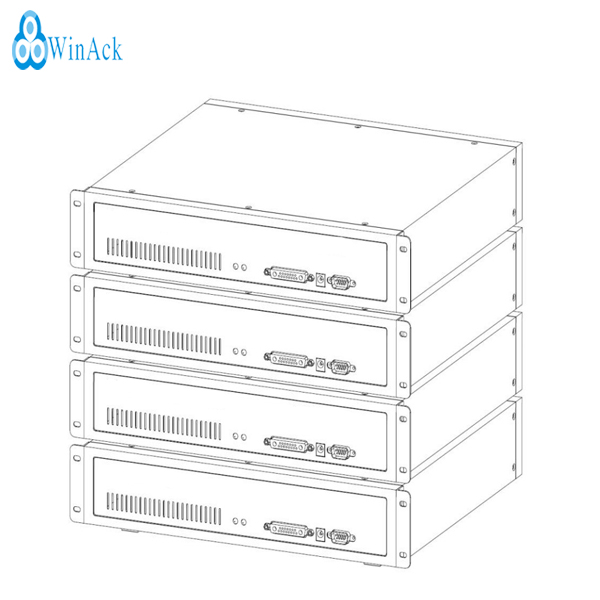

2. Multiple battery testers can form a multi-channel mobile phone battery test system; each channel is independent and does not affect any other channels.

3. The multi-channel mobile phone battery test system can start the test on multiple channels at the same time, or independently test on each channel.

4. It has powerful functions and can complete battery performance test (ATE test) and GG communication test (FPT/OQC) on the same battery tester.

5. A variety of test functions are integrated, and the test steps can be completed at one time in one station through programming, which can greatly improve the test efficiency.

6. Support the barcode reader to scan the battery barcode serial number, record the test result of the battery serial number binding to the database, and write the battery barcode data to the power management chip.

7. The system supports two barcode scanners at the same time, which can scan both the battery cell barcode and the battery barcode at the same time.

8. The battery test system itself has a complete power-on self-check function, and the working status of each channel can be checked through the indicator on the front panel.

9. The mobile phone battery tester comes with computer software, which can realize parameter setting, parameter download, test result display, test data storage, software update, and tester calibration.


Scope of application:

The battery tester is suitable for all functional testing of the mobile phone battery.

This mobile phone battery tester is a professional, high-precision lithium battery test system, and is one of the necessary testing equipment for mobile phone battery pack production lines.


Test items of the cell phone battery test system

NO.

Performance test

GAS GAUGE communication test

01

Battery activation

Unlock (Unseal)

02

Open circuit voltage 1

Status bit check 1

03

Open circuit voltage 2

DataRam match

04

AC impedance

DataFlash match

05

Resistance R1 test (thermistor test)

Enable Gauging

06

Resistance R2 test

Temperature measurement accuracy

07

Discharge test

Voltage measurement accuracy

08

Charge test

Discharge current accuracy

09

Short circuit test

Charging current accuracy

10

Discharge overcurrent test

Shutdown

11

Primary discharge overcurrent test

Status bit check 2

12

Charge overcurrent test

Reset / Clear

13

Huawei leakage current test

Delay

14

BQ2022A chip read and write

Write Flash

15

/

Initialization

16

/

Calibration

Note: It is free to flexibly arrange the test steps, all the test steps in one tester, one station to complete the test.

Accuracy index of the mobile phone battery tester

Items

Measuring range

Resolution

Accuracy index

Voltage

0~5V

0.0001V

±0.05%RD+0.0002V

0~20V

0.0001V

±0.05%RD+0.001V

Current

0~3A

0.001A

±0.15%RD+0.0005A

0~30A

0.01A

±0.15%RD+0.005A

AC internal resistance

0~200mΩ

0.1 mΩ

±0.1%RD+0.2 mΩ)

0~2000mΩ

0.1 mΩ

±0.15%RD+0.5 mΩ)

Resistance

0~2KΩ

0.001 KΩ

±0.2%RD+0.005 KΩ)

0~20KΩ

0.001 KΩ

±0.2%RD+0.005 KΩ)

0~200KΩ

0.01 KΩ

±0.2%RD+0.05 KΩ)

0~3MΩ

0.1 KΩ

±0.2%RD+0.5 KΩ)

Auxiliary voltage

0~5V

0.0001V

±0.1%RD+0.001V

Leakage current

0~500uA

0.01uA

±(0.1%RD+0.1uA)
