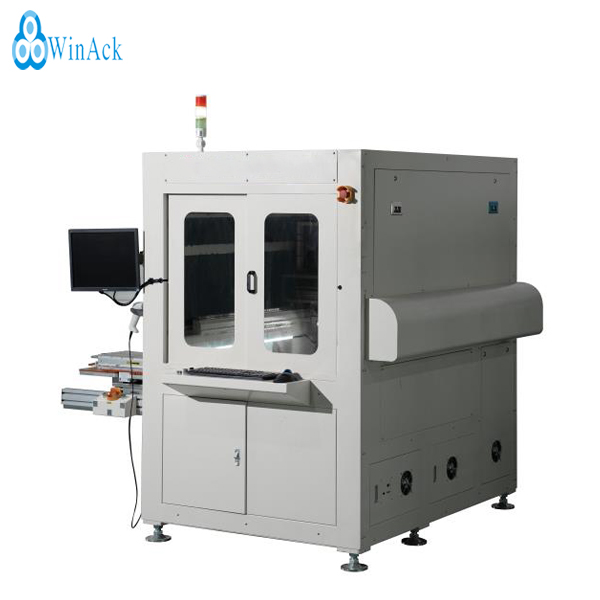

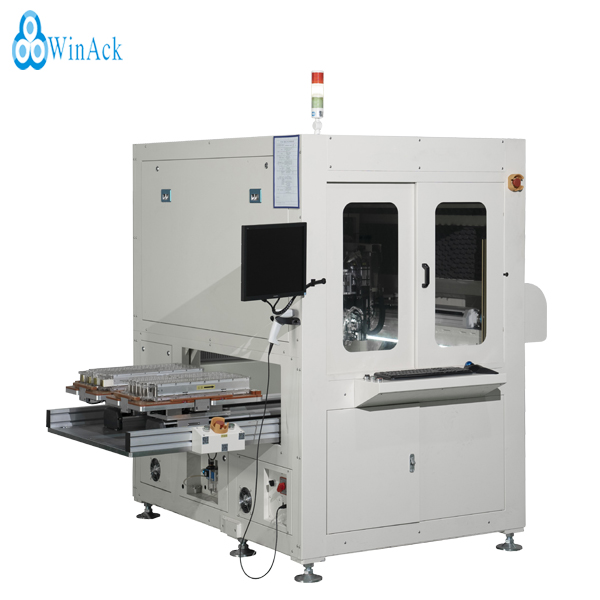

Battery Pack Welding Quality Inspection Machine

  • Product model: WA-WQI-001TX
  • Test speed: ≤6~12min/side
  • Missed detection: 0%
  • False detection: <0.5%
  • Product description: This battery pack inspection tester is suitable for lithium-ion battery pack welding quality inspection of ultrasonic welding equipment & Al wire bonding machine for battery pack production.
  • INQUIRY   EMAIL

Product description:

The lithium-ion battery pack welding quality inspection machine is used to detect fake welding and missing welding of battery packs, and provides guarantee for the quality of battery pack welding.


Features:

1. Fully automatic detection, recording the data of each battery cell, greatly reducing the false detection and missed detection caused by manual detection.

2. Adopting modular design, it has good expansion flexibility and maintenance convenience.

3. The use of high-reliability hardware circuit design, high-frequency sampling technology and advanced digital control technology platform can ensure high-precision output and high stability, thereby ensuring test quality and data reliability.

4. Centralized control by the host computer, real-time monitoring of equipment operating status.

5. The server and MES system can be connected, which makes it easier to collect product test data.

6. The system uses self-developed test pins and high-reliability hardware circuit design to ensure stable and reliable test connections, thereby ensuring test quality and data accuracy, and providing effective guarantees and comprehensive data support for the reliability of battery modules.


Scope of application:

This battery pack welding quality inspection machine is suitable for the rapid inspection of the welding reliability of lithium-ion battery packs of ultrasonic welding equipment & Al wire bonding machine, including 18650 battery module and 21700 battery module.



Brief introduction of the battery pack inspection equipment

Product name

Battery Pack Welding Quality Inspection Machine

Product model

WA-WQI-001TX

Applicable modules

18650 battery module: 540*340mm

21700 battery module: 968*314*86mm

21700 battery module: 657*314*88mm

Customizable

Test speed

≤6~12min/side

Gas nozzle distance

The distance between the gas nozzle and the welding point:

<10~18mm

Blowing force

230~300g

Detection accuracy

Missed detection: 0%

False detection: <0.5%

Test pins life

300,000 times

Current accuracy

±(0.05%FS+0.05%RD)

Data recording time

≥100ms

Software function

Support cyclic working condition file import test function


Lithium-ion battery pack welding quality inspection machine


Battery pack welding quality inspection of ultrasonic welding equipment & Al wire bonding machine
