Battery Pack Testing Equipment

  • Battery Cycle Charge Discharge Testing Equipment (500V150A)

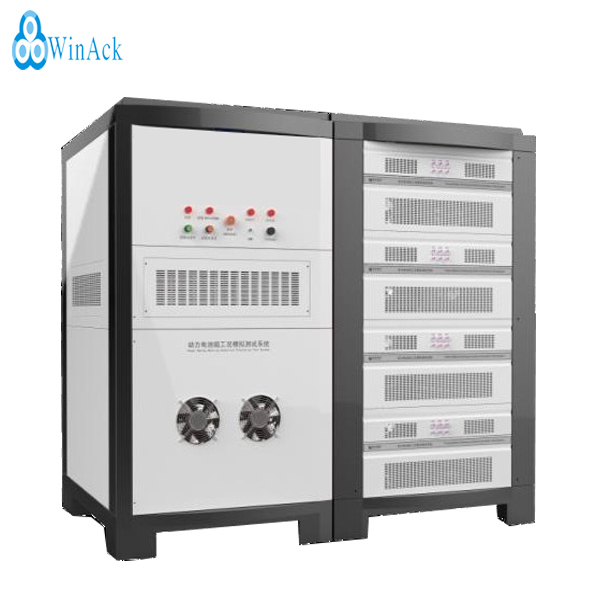

Battery Cycle Charge Discharge Testing Equipment (500V150A)

Battery Cycle Charge Discharge Testing Equipment (500V150A)

  • Product model: WA-BT-500V150A
  • Voltage range/channel: DC5V~DC500V
  • Current range/channel: -150A~+150A
  • Measurement accuracy: ≤1‰FSR (full scale)
  • Product description: The battery cycle charge and discharge system is a testing equipment for high voltage battery pack cycle life test, charge/discharge test, capacity test and charge-discharge efficiency test...
  • INQUIRY   EMAIL

Product description:

The battery cycle charge and discharge system is a testing equipment for high voltage battery pack cycle life test, charge/discharge test, capacity test and charge-discharge efficiency test...

This tester is an energy feedback type, bidirectional and 8-channel power processing system controlled by computer. It is specially designed to test the high-power lithium-ion battery pack, super-battery capacity and motor performance test...

The high voltage battery cycler can execute variable power curve output at the millisecond level and carry out battery simulation test according to the real road condition with excellent accuracy and flexibility and all the discharged energy can return to the power grid. Its test data, which are obtained from the electrical performance tests on EV and HEV power battery systems according to various countries, industries and enterprise standards, can help the battery manufacturing enterprises, EV manufacturers and testing institutions assess the quality of batteries.

The battery charge discharge test equipment can provide diverse outputs, such as constant voltage, constant current, constant current converting to constant voltage, pulse, constant power, constant resistance, current phase step, voltage ramp, current ramp and variable power modes etc; in the meantime, any steps can be programmed to operate in any combination of operating modes to execute charge/discharge test and the modes can be switched quickly.



Type

Application

WA-BT-500V150A

Battery testing and cycling

Battery cell

Battery module

Battery management system

(BMS)

Battery pack

Production test

Simulation

Battery

Power system

Fuel battery

Hardware in circulation

Energy-storage charging and testing

Fuel battery

Super-capacitor

Flywheel


Features:

1. Industrial-standard dynamic current cycling test: The electrical performance test can accord with GB/T 31467-2015, GB/T 31484-2015 and GB/T 31486-2015 etc.

2. Energy-feedback design: With high energy-feedback efficiency, the electric energy sourced by battery pack can be recycled to the power grid or to the channel performing a charging function, which saves the electric energy and greatly reduces the production cost.

3. Execute working condition simulation test according to the actual road conditions: The actual working condition data of the vehicles can be transformed to the simulation test technology so that the users can develop their own test working conditions.

4. User-friendly operational software:

4.1 With simplified operational software, this test equipment integrates "working condition simulation" and "charge-discharge function".

4.2 It has diverse outputs ("step design"), such as constant current, constant voltage, constant current converting to constant voltage, pulse, constant power, constant resistance, current phase step, voltage ramp, current ramp, variable power, cycle and rest etc.

4.3 Test step: 9999 steps; cycle index: 9999 times; unlimited program storage.

4.4 Set the jump and end conditions according to the conventional variables (voltage, current, time, capacity, energy, power and temperature) and custom variables (BMS variables and other collectors).

4.5 WinAck Battery working condition simulation system adopts “menu-type programming”. It supports real-time working condition file (EXCEL format) import. The working condition files can be obtained by artificial editing and working condition acquisition system.

5. Multiple data report function:

5.1 Data report function: XLS-format report can be generated. The report includes channel data, step data, result data, real-time data etc and the report can be converted into graphs.

5.2 Data analysis function: the user can simultaneously select 4 parameters on Y axis and thus generate the needed graphs.

5.3 Data storage: the data can be exported one by one or all exported by multiple choices; the data can be named by barcode No., administrator ID or item name etc.

6. Sophisticated protection functions:

6.1 Sophisticated input and output power-off protection function can ensure the security of equipment, test data and test objects. Flexible programming modes can meet the test requirements of the complex techniques.

6.2 Input protection: overvoltage, overcurrent, default phase and over-temperature protection.

6.3 Output protection: overvoltage, overcurrent, short-circuit, temperature, undervoltage, battery polarity reversal and external short-circuit protection.

6.4 Power-off protection: after power off, the battery will disconnect from the equipment.

6.5 Battery cell protection: cell undervoltage, cell overvoltage, cell overtemperature and reversed polarity protection. The protection limit value can be set.

6.6 The control software can set the protection conditions: software overvoltage protection, software undervoltage protection, software overcurrent protection, auxiliary temperature protection, auxiliary voltage protection. The protection voltage and current values can be set, displayed, prompted and recorded on the list after channel protection.

6.7 Emergency-stop protection: under abnormal situations, the system has emergency stop function. All the channels can be stopped simultaneously.

7. Output of a single channel:

WinAck power battery pack working condition simulation test system contains 8 channels.

Each channel is composed of a bidirectional DC/DC power supply(500V150A) and maximum power of 75kW per channel.

8. Parallel-connected channels extend the application scope:

8.1 The battery charge and discharge tester is composed of 8-channel 500V150A power system and the 8 channels can be used in parallel to form an maximum output capability of 8-channel 500V or 1200A , which can meet the needs of charge and discharge and pulse discharge for cycling and pulse test of high power battery.

8.2 The flexible parallel connection of multiple channels is designed to support higher configuration allowing for creating a wider range of test scenarios. Thereby it can help reduce the device investment while increase the performance efficiency.

9. System integration:

Integration of liquid-cooling system, vibrostand, environment chamber, cell voltage & temperature acquisition system and electronic load braking system etc (the integrated equipment should be charged):

9.1 After integrating with constant temperature and humidity chamber via the software, the equipment can execute synchronous set-up conditions matching with cycling test and reserve RS232, CAN and Internet interfaces.

9.2 After integrating with Battery Voltage and Temperature Monitoring System, via software, the equipment can collect and analysis the Li-ion battery cell temperature in real time and reserve CAN and Internet interfaces.

9.3 Motor performance test: The equipment can integrate with the electronic load braking system via software to complete the motor simulation test.



Test items of the battery charge and discharge machine

1

Contrast of parameters in some BMS addresses

2

Accuracy test of BMS static total voltage (the sampling comparison of BMS and the equipment)

3

Current accuracy test of BMS sampling (the comparison of current measured by BMS and the equipment)

4

DCIR test (can be added according to the requirements of users)

5

Cycle life test of battery module/pack

6

Capacity test of battery module/pack

7

Charge/discharge test of battery module/pack

8

Pulse charge/discharge test of battery module/pack

9

Charge retention and recovery capability test of battery module/pack

10

Charge-discharge efficiency test of battery module/pack

11

Consistency test of battery module/pack

12

Temperature test of battery cell


Technical Parameters of the battery charge discharge system

1

Product name

Battery Charge Discharge System

2

Product model

WA-BT-500V150A

3

Input voltage

AC380V±10% / frequency 50Hz±2Hz

Three-phase five-wire system

4

Output current of a single channel

-150A+150A

Constant power of a single channel: 75kW

Constant power of the 8 channels:

200kW

5

Applicable load voltage range of a single channel

DC5VDC500V

6

Power accuracy

≤2‰FSR (full scale)

7

Measurement accuracy of charge-discharge current

≤1‰FSR (full scale)

8

Measurement accuracy of voltage

≤1‰FSR (full scale)

9

Current response time Tr Rise Time

≤10ms

The transition time for the output current to ramp from 10% to 90% of the set value (The rise time of current)

Battery load

10

%Overshoot

%Overshoot≤2%FSR (full scale)

Tr (Rise Time) ≤ 10ms (Battery load)

11

The switching time between charge and discharge

(-150A to +150A

+150A to -150A)

≤20ms

For instance, the min. transition time from the charging state to the discharging state and the output current reaching to the set value

12

Data sampling time

1ms/1s

The internal sampling of the converter is 1ms and the communication display 1s

13

Min. data recording interval of the upper computer

≥10ms

14

Functions

Constant voltage, constant current, constant power, constant current converting to constant voltage, constant power, current phase step, voltage ramp, current ramp, pulse current and current curve output etc.

Note: different functions can

be combined randomly.

15

Protection

Power off protection: including AC input and feed

Overvoltage, undervoltage, default phase, overcurrent, overload and communication outage protection etc.

16

Communication modes

CAN 2.0A, 2.0B

CAN communication (dbc file import)

17

Interface

CAN, Ethernet, USB interface

18

Amount of CAN bus interfaces

2 loop/1 channel

CAN bus interfaces, through which can read the BMS data.

The users can change the communication frame numbers according to different BMSes.

19

Road spectrum data automatic conversion software

Available

Can automatically convert the road spectrum data files of EXCEL and TXT files into test files

20

Lengths of the output line and sampling line

5m

Main channel output cable, data acquisition cable and sampling cable of the auxiliary channel

21

Dustproof and heat dissipation

Available

With dustproof and cooling devices

22

Sound

≤75dB

Normal working conditions

23

Cooling method

Air-cooled

24

Harmonics of the current returning to the power grid

≤5%

25

Efficiency

>0.92

26

Power factor

>99%

27

Unexpected outage protection

Available

While unexpected outage occurs, the equipment has outage protection. After power on, the equipment can continue the work step operated while outage

28

Working temperature

0-40

The long-term endurance of the hardware and over-temperature alarm

29

Working humidity

0~85%RH

30

Hardware protection level

IP22

31

Resuming from the break point

Available

32

Emergency stop button

Available

33

Proofreading of testing process

Available

The compiling software of testing process can proofread the test process

34

Energy feedback

Available

The discharging energy returns back to the power grid

Battery Cycle Charge Discharge Testing Equipment for Battery Pack Cycle Life Test (500V 150A)
