Battery Cell Sorting Machine

  • 18650 Battery Sorter Machine for Cell Testing and Sorting
  • 18650 Battery Sorter Machine for Cell Testing and Sorting
  • 18650 Battery Sorter Machine for Cell Testing and Sorting
18650 Battery Sorter Machine for Cell Testing and Sorting18650 Battery Sorter Machine for Cell Testing and Sorting18650 Battery Sorter Machine for Cell Testing and Sorting

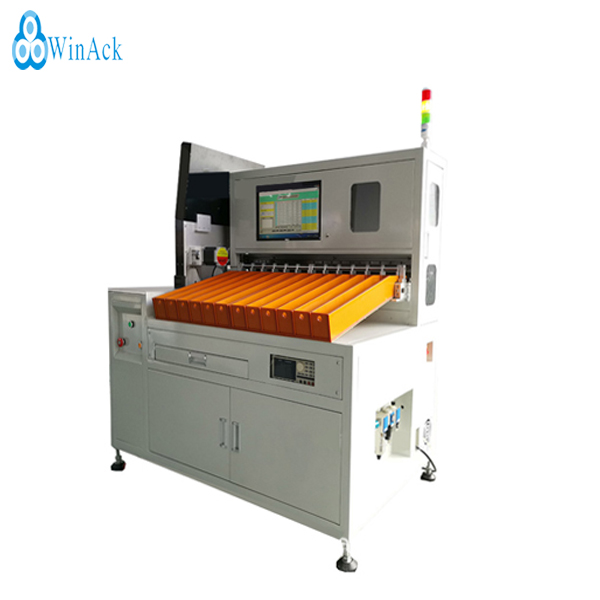

18650 Battery Sorter Machine for Cell Testing and Sorting

  • Product model: WA-AS-12C
  • Production efficiency: 5500~6000PCS/Hour
  • Measurement of internal resistance: 0~60mΩ
  • Measurement of voltage: 0~10V
  • Product description: WinAck Battery is a professional and reliable manufacturer of 18650 battery sorter machine. Welcome to contact us for best services and price for you.
  • INQUIRY   EMAIL

Product description:

The 18650 battery sorter machine can accurately send the battery cell to the designated channel according to the set internal resistance and voltage value. It is a good choice for 18650 battery cell sorting before battery pack assembly and production. Choose us, choose a major, welcome to consult and cooperate.


Features:

1. Fast sorting speed: 5500pcs/ hour, good stability.

2. The battery cells are transported smoothly during the sorting process to avoid the impact of high drop on the inside of the cells.

3. The battery cell tester is an internationally renowned brand, with high detection accuracy, good stability and durability.

4. Manually fill the battery cells, set the sorted internal resistance and voltage values, and click Start to sort the battery cells to the specified channel accurately.

5. The system can store the sorting setting parameter value of each group, and it can be switched after one setting.

6. The battery sorter machine and the battery insulation paper sticker machine can be connected through a conveying track to become a battery sorter and sticker 2-in-1 machine, which improves production efficiency and saves labor costs.


Scope of application:

By setting the internal resistance value and voltage value of the cell, the 18650 cylindrical battery cells is accurately sorted, and then used to produce high-quality battery packs. If necessary, 21700, 26650 and 32650 cylindrical battery sorters can be customized.


18650 Battery Sorter Machine Parameters

Product name

12 channels Automatic Battery Sorting Machine

Product model

WA-AS-12C

Production efficiency

5500~6000PCS/Hour

Sorting speed

80~95 PPM

Input voltage

220V / 50Hz (or can be customized)

Input gas source

0.4~0.8Mpa

Battery tester

Hioki 3561 / HK 3561

Measurement of internal resistance

Range: 0~60mΩ

Accuracy: ±0.5%rdg

Measurement resolving power: 0.1mΩ

Measurement of voltage

Range: 0~10V

Accuracy:±0.015%rdg

Measurement resolving power: 0.1mV

Control device

HD Screen & IPC

Size(L*W*H)

1460*930*1680mm

Weight

About 200kg


18650 Battery Sorting Machine Configuration

Serial number

Spare parts

Brand

1

Air cylinder

SMC / CKD

2

Solenoid value

SMC / CKD

3

Linear guide rail

TPI

4

Electric relay

OMRON

5

PLC

XINJIE / TouchWin

6

Inductorium

OMRON / SUNX

7

Stepper motor

Leadshine/ Inovance

8

Servo motor

Fuji Electric / Panasonic

9

Battery tester

Hioki3561 / HK 3561
