Battery Cell Sorting Machine

  • 18650 Battery Sorting Equipment for Battery Pack with Collection Box
  • 18650 Battery Sorting Equipment for Battery Pack with Collection Box
  • 18650 Battery Sorting Equipment for Battery Pack with Collection Box
18650 Battery Sorting Equipment for Battery Pack with Collection Box18650 Battery Sorting Equipment for Battery Pack with Collection Box18650 Battery Sorting Equipment for Battery Pack with Collection Box

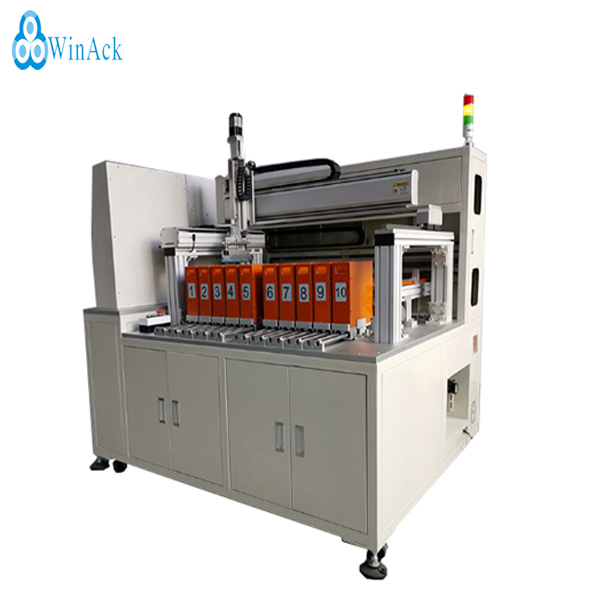

18650 Battery Sorting Equipment for Battery Pack with Collection Box

  • Product model: WA-AS-10SL
  • Sorting speed: 60~70 PPM
  • Measurement of internal resistance: 0~60mΩ
  • Measurement of voltage: 0~10V
  • Product description: We supply full set of 18650 lithium Battery Sorting Equipment for battery pack assembly production line with technology support.
  • INQUIRY   EMAIL

Product description:

The 10-Channels 18650 battery sorting equipment for battery pack assembly is a machine equipped with a high precision voltage and internal resistance tester. It can automatically sorting battery cells into different channels based on the testing results.

The automatic battery sorting system is designed and developed according to user needs, and the host computer software is automatically sorted according to the grouping information and collected in the battery cell collection box.


Features:

1. The battery sorting equipment test 60~70 PPM, fast sorting speed, good stability.

2. The equipment is controlled by PLC and PC.

3. PLC is responsible for battery feeding, battery handling and battery sorting.

4. The equipment will accurately transfer the battery cell to the specified channel according to the set internal resistance and voltage values.

5. PC is responsible for battery test data collection, voltage and internal resistance rating.

6. The battery sorting equipment has high working efficiency, saving manpower, and good product performance.

7. Automatically collect the battery cells in the collection box, neatly arranged, with full material alarm function, improve production efficiency.


Scope of application:

Standard: 18650/21700/26650/32650 battery automatic sorting equipment for battery pack manufacturer


18650 Battery Sorter Machine Parameters

Product name

10 channels Automatic Battery Sorting Machine with Collection Box

Product model

WA-AS-10SL

Sorting speed

60~70 PPM

Input voltage

220V / 50Hz (or can be customized)

Input gas source

0.4~0.8Mpa

Battery tester

Hioki 3561 / HK 3561

Measurement of internal resistance

Range: 0~80mΩ

Accuracy: ±0.5%rdg

Measurement resolving power: 0.1mΩ

Measurement of voltage

Range: 0~10V

Accuracy:±0.015%rdg

Measurement resolving power: 0.1mV

Battery collection box

10PCS

Control device

PLC & IPC

Size(L*W*H)

1400*1700*1500mm


Battery Sorting Equipment Configuration

Serial number

Spare parts

Brand

1

Air cylinder

SMC / CKD

2

Solenoid value

SMC / CKD

3

Linear guide rail

TPI

4

Electric relay

OMRON

5

PLC

XINJIE / TouchWin

6

Inductorium

OMRON / SUNX

7

Button

Goncon

8

Switch

MingWei

9

Battery tester

Hioki3561 / HK 3561

battery sorting equipment

18650 battery sorter machine

18650 battery voltage tester
